HAWKE VANTAGE SCOPE 4X32 AO MD 14102

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

• Capped Low-Profile Turrets
• 1 Inch Mono-Tube Chassis
• Adjustable Objective For Parallax Correction
• 11 Layer Fully Multi-Coated Lenses
• High Torque Zoom Ring
• Fast Focus Eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

Mil Dot Reticle
The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction.





Technical Specifications;

Objective Lens	32mm
Reticle	Mil Dot
Parallax	Adjustable Objective
Magnification	4x
Optical System	System H2
Focal Plane	SFP (Second Focal Plane)
Scope Tube	1 Inch
Illumination	N/A
Field of View	28.5ft @100yds 9.5m @100m
Field of View	5.4°
Eye Relief	3.5in 90mm
PX/Focus	5yds - ∞ 5m - ∞
Exit Pupil	0.31″ 8mm
Weight	13.1oz 370g

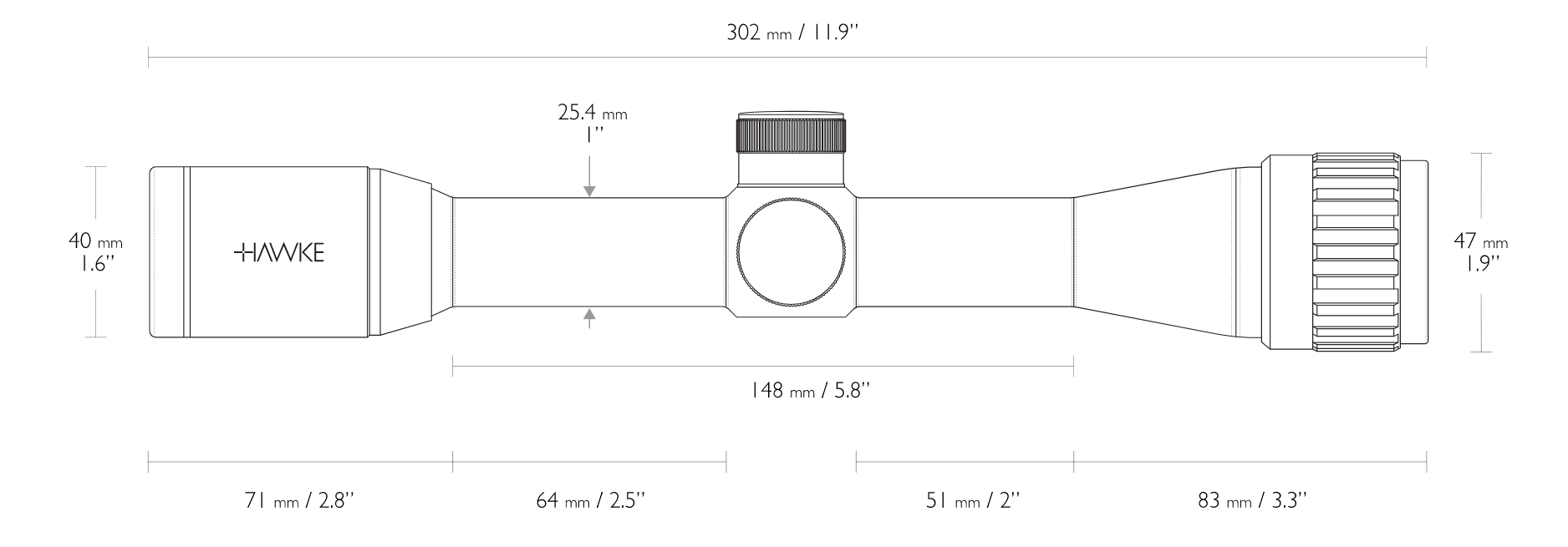

Length	11.9″ 302mm
Turret Type	Capped
Turret Caps	YES
Click Value	1⁄ 4MOA
Elevation Turret Clicks (max)	165 MOA
Windage Turret Clicks (max)	165 MOA
Ocular Type	Fast Focus
Power Selector	Knurled Posi-Grip
Lens Coating	Fully Multi-Coated - 11 Layers



Download

The product instructional manual can be downloaded here
