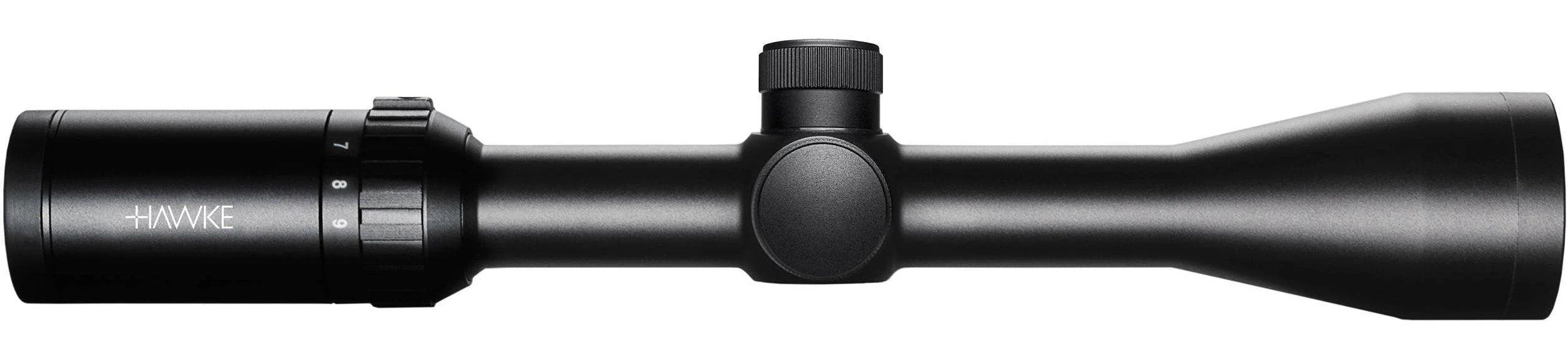

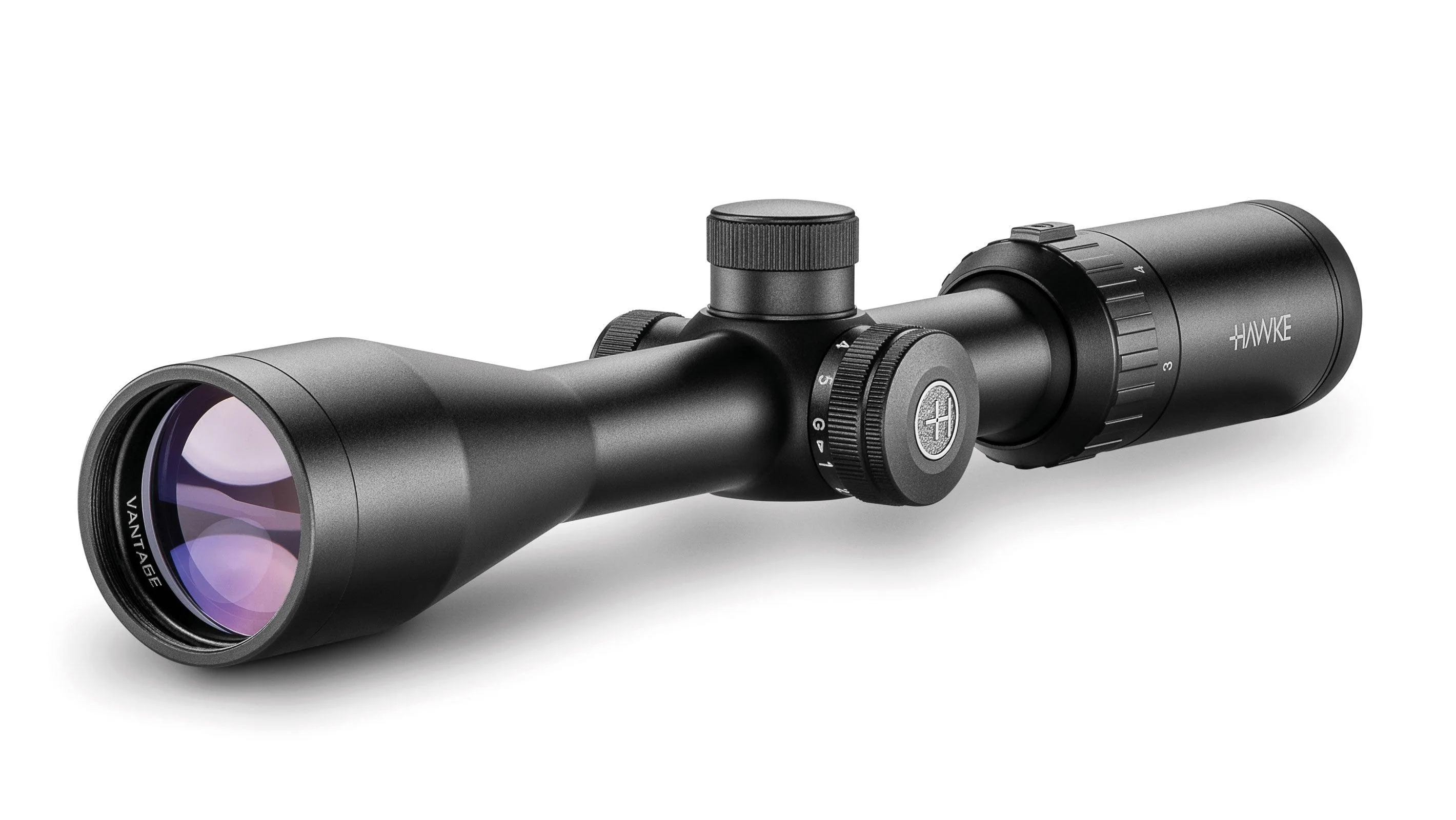

HAWKE VANTAGE 3-9X40 RIMFIRE .22 LR(SUB) IR- 14223
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
- Capped "No Snag" Low-Profile Turrets
- 1 Inch Mono-Tube Chassis
- Illumination
- 11 Layer Fully Multi-Coated Lenses

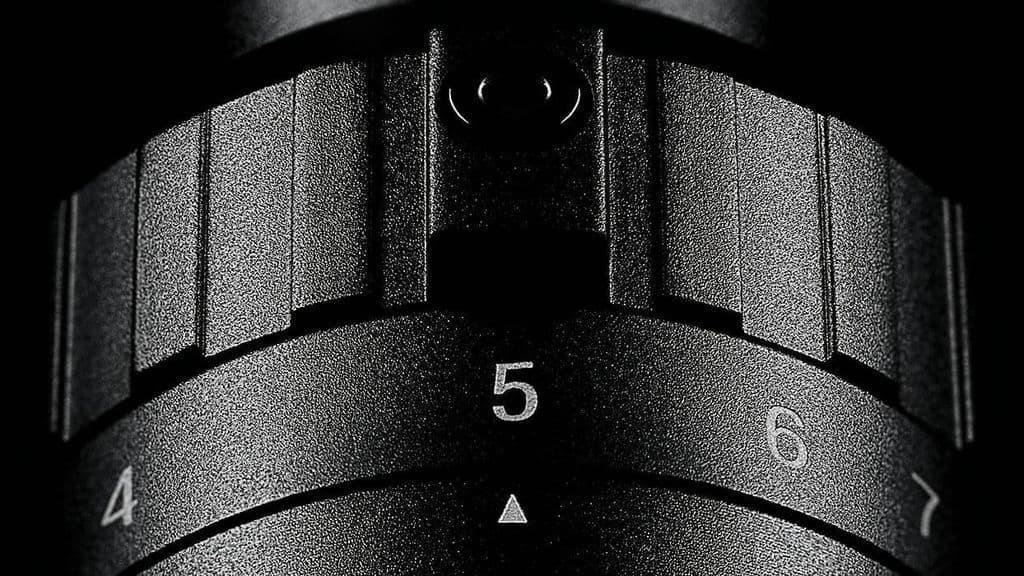

- High Torque Zoom Ring
- Fast Focus Eyebell

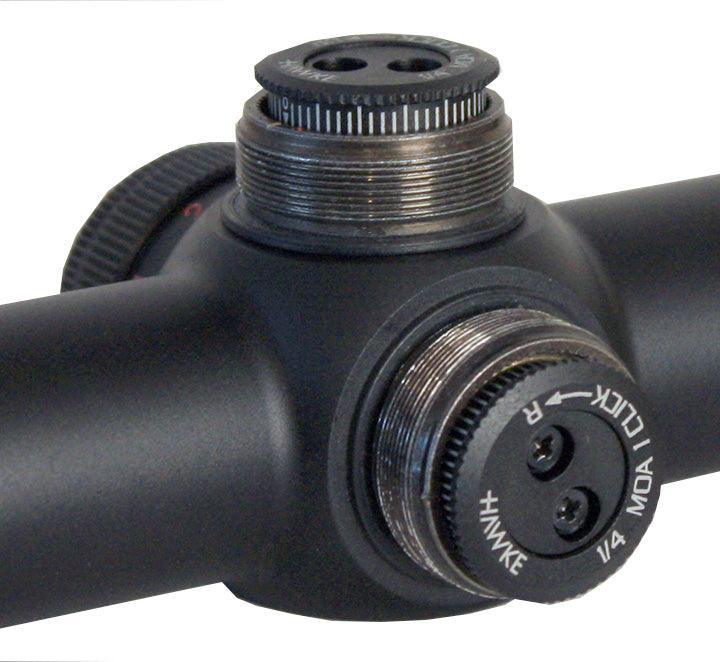

- 1/4 MOA low profile "no-snag" fingertip turrets
- Rimfire .22 LR Subsonic Reticle
- Glass etched reticle with red and green illumination
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty

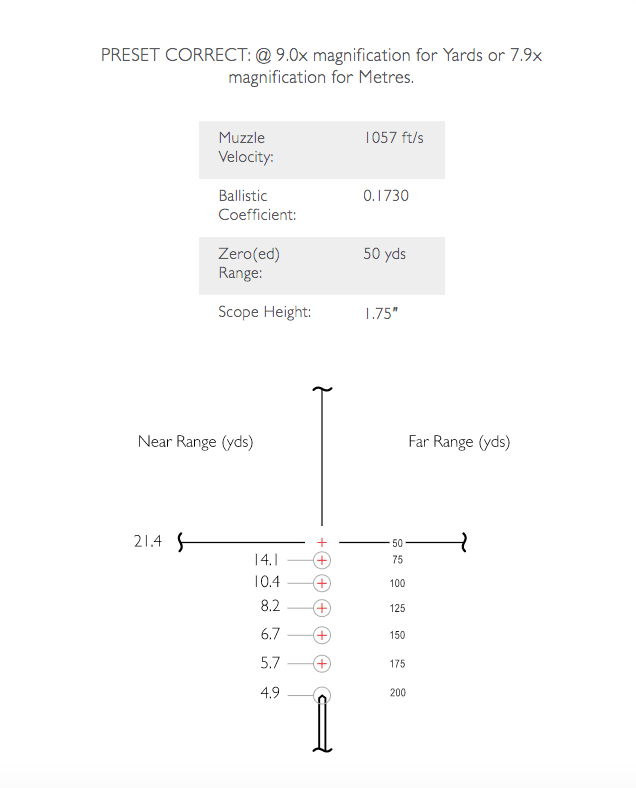

Rimfire .22 LR Subsonic 9x Reticle:
Registered reticle design exclusive to Hawke. Aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.
Designed for the .22 LR Subsonic caliber. Zero on 9x magnification at 50 yards and all aim points are pre-calculated. 1057 fps (322 m/s).
The scope can also be used for 50m zero with aimpoints correct in metric when the magnification is set to 7.9x.
|

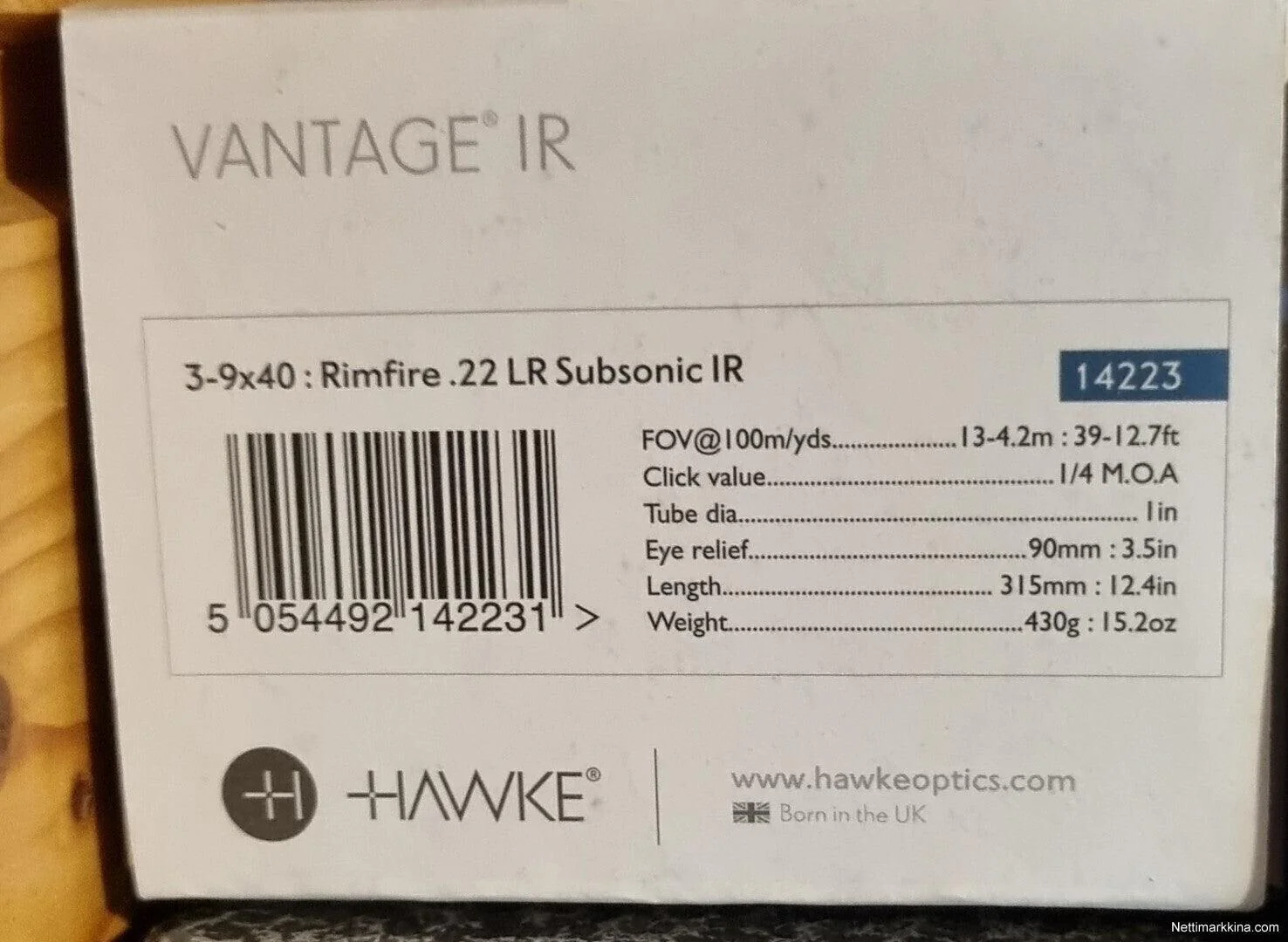

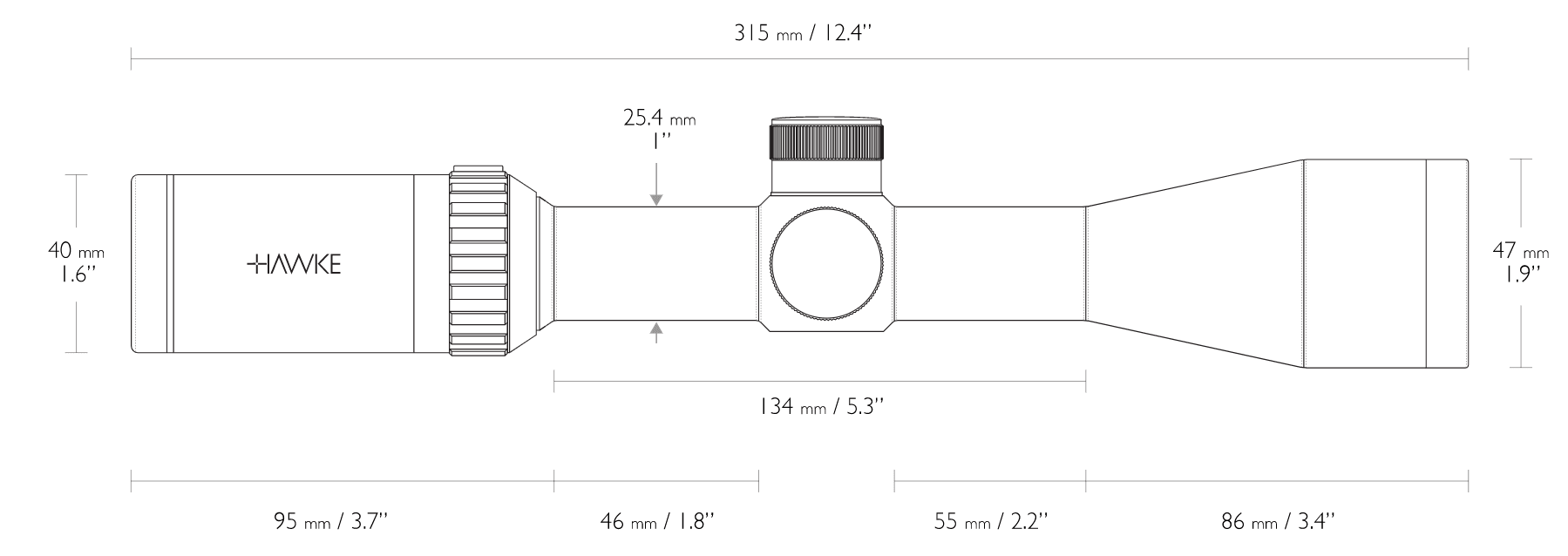

Length: |
315mm |
12.4" |
|
Weight: |
430g |
15.2oz |
|
Eye relief: |
89mm |
3.5" |
|
Focus/Parallax – Fixed |
69m |
75yds |
|
Field of View: |
13-4.2m @100m |
39-12.7ft @100yds |
|
Exit Pupil: |
13.3-4.4mm |
0.5-0.2" |
|
Chassis: |
1" Mono-tube |
|
|
Optical System: |
3-9x |
|
|
Objective: |
40mm |
|
|
Illumination: |
Red / Green |
|
|
Reticle: |
Rimfire .22 Subsonic |
|
|
Elevation Increment: |
1⁄4 MOA |
|
|
Elevation Adjustment Range: |
100 MOA |
|
|
Windage Increment: |
1⁄4 MOA |
|
|
Windage Adjustment Range: |
100 MOA |
|
|
Material: |
Aluminium |
|
|
Ocular Type: |
Fast Focus |
|
|
Lens Coating: |
Fully Multi-Coated - 11 Layers |
|
|
Power Selector Style: |
Knurled Posi-Grip |
|
|
Focal Plane: |
Second Focal Plane (SFP) |
|
|
Turret Caps: |
Yes |
|
|
Turret Type: |
Low Profile |
|
External media;
(Full product review)
Downloads;
- Intruction manual .pdf can be downloaded HERE.
