HAWKE VANTAGE SCOPE 3-9X40 AO MIL DOT 14123

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

• Capped Low-Profile Turrets
• 1 Inch Mono-Tube Chassis
• Adjustable Objective For Parallax Correction
• 11 Layer Fully Multi-Coated Lenses
• High Torque Zoom Ring
• Fast Focus Eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.



Mil Dot Reticle

The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction.



Technical Specifications;

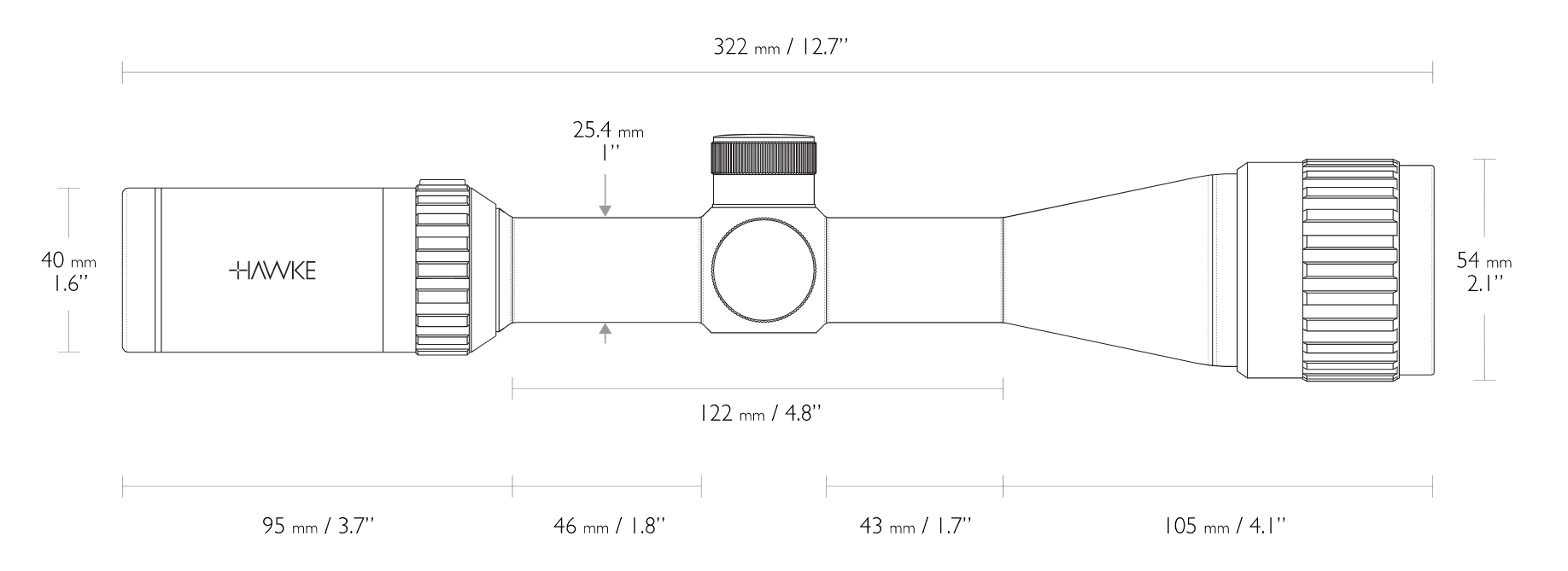

Length:	322mm 12.7"
Weight:	482g 17oz
Eye relief:	89mm 3.5"
Focus/Parallax – AO	9m - ∞ 10yds - ∞
Field of View:	13.7-4.2m @100m 39-12.7ft @100yds
Exit Pupil:	13-4mm 0.5-0.1"
Chassis	1" Mono-tube
Optical System	3-9x
Objective	40mm
Illumination	N/A
Reticle	Mil Dot
Elevation Increment	1⁄4 MOA
Elevation Adjustment Range:	100 MOA
Windage Increment	1⁄4 MOA
Windage Adjustment Range	100 MOA
Material	Aluminium
Ocular Type	Fast Focus
Lens Coating	Fully Multi-Coated - 11 Layers
Power Selector Style	Knurled Posi-Grip
Focal Plane	Second Focal Plane (SFP)
Turret Caps	Yes
Turret Type	Low Profile



Downloads;

Product manual can be downloaded here

External Media;
(Product review done by one of our favourite YouTube reviewers!)
