YONGHENG 4500 PSI 240V COMPRESSOR (MANUAL SHUTOFF)

• Power: 110V 60HZ; Motor Power: 1.8KW; Charge pressure: 30MPA; Working Pressure: 300BAR 30MPA 4500PSI. Air pump inflating speed: 2800r/min; Work flow: 50L/min;Practical test: 0.5 liter cylinder filled for 4 minutes to 300BAR/30MPA/4500PSI;Oil standard: IS0 VG 46 & AW 46.
• WIDE APPLICATION: Perfect for fire fighting, paintball, leakage detecting, pressure-tight test, automobiles, air impermeability test, pressure proof test, etc.
• PREMIUM QUALITY: Designed with two-stage compression and two water-oil separators for performance stability. It takes only 54 minutes to fill full 6.8L tank to 300BAR.
• COOLING SYSTEM: Please prepare enough cooling water, it is recommended to be a vat of water to achieve better cooling effects. The water in container should be no less than 20L/5 gallon.WORKING WITHOUT WATER IS FORBIDDEN!
• ATTENTION: This compressor is manual shut-off only - you'll need to switch the compressor off yourself once the target pressure is reached.
• 🔴Notice: 🔴The temperature sensor is only compatible with AG13, 357A, CX157 and LR44W 1.5V batteries;Be sure to tighten the pressure relief screw before use!

HOM

Model	YH-QB01

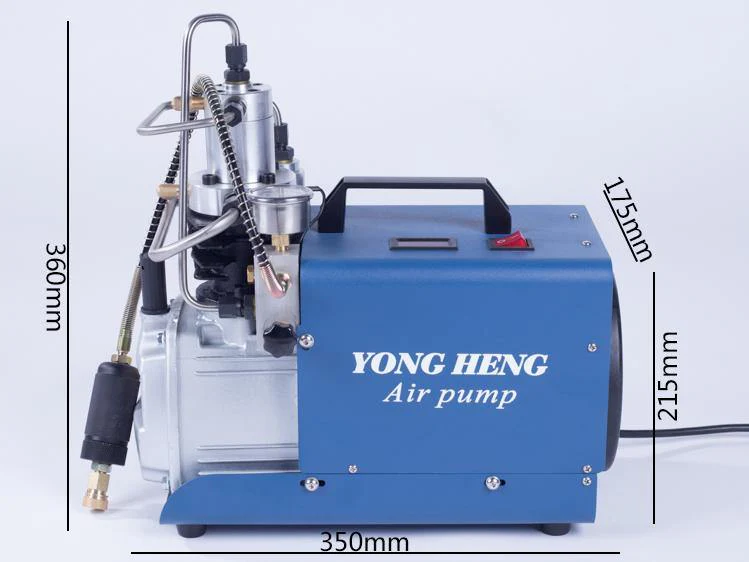

Volume	L36CM* W18CM *H37CM
Net Weight	16KG
Voltage	100-130V/60HZ
Power Rating	1.8KW
InflatingSpeed	2800R/Min
Noise	MAX 78DB
Air Flow Rate	50L/Min
Working Pressure	0-300BAR 0-30MPA 0-4500PSI
Cooling System	Water Cooling
Compression Stage	Two Stage
Lubrication Mode	Splash Type
Material of Cover	Cast Aluminum

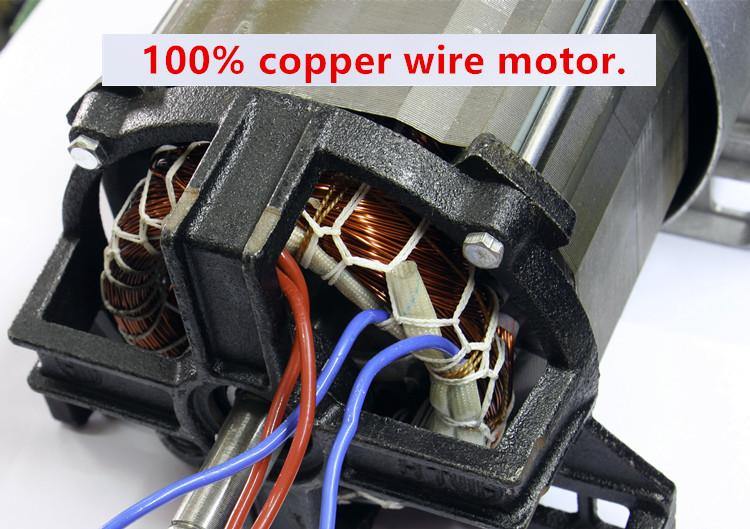

Material of Motor	100% Pure Copper
Oil:	ISO VG46 Anti-Wear Hydraulic Oil(the machine is without of oil because the oil is not allowed on the plane)
Test Inflating Result	It takes 3 mins 50 seconds to fill full 0.45L tank to 30MPA
Test Inflating Result	It takes 8mins to fill full 1L tank to 300BAR
